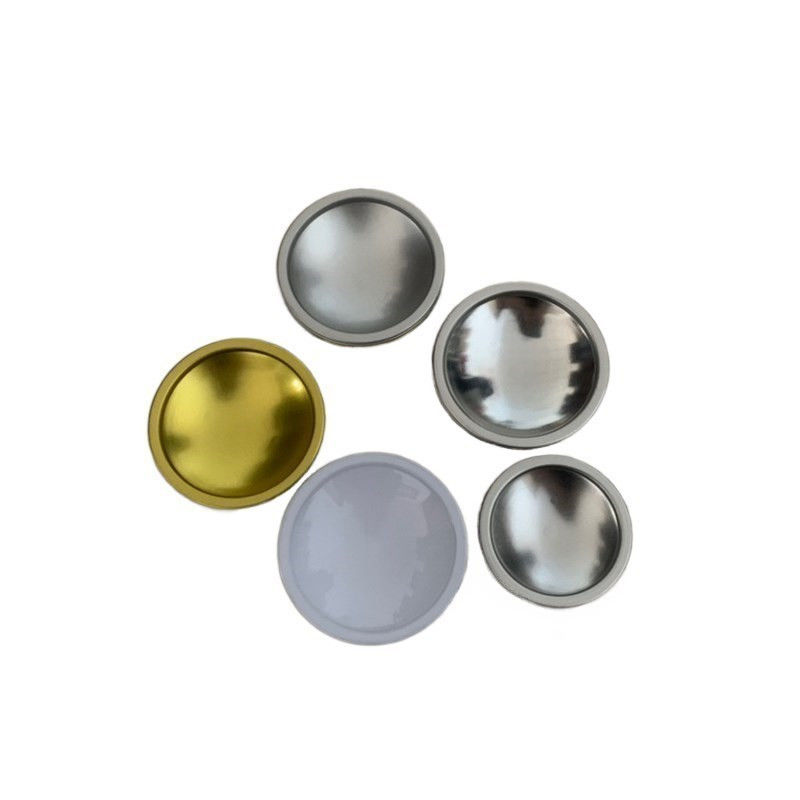

211#(65mm) General Bottom Tinplate Metal Bottom Dome Packaging Good Compression
The outer diameter of the flange (D3) is 75.00±0.20mm
Inner diameter of flange (D2) 73.10±0.30mm
Flange height (H2) 2.45±0.15
Buried depth (H3) 3.10±0.15mm
Total covering height (H1) 14.70±0.20mm
Fit diameter (D1) 65.10±0.20mm
Dry glue quantity 90-110mg
Deformation pressure ≥1.3MPa
Bursting pressure ≥1.5MPa
Indenter fits well with the company's indenter
Thickness of iron sheet 0.32-0.33
Iron hardness T4CA
Coating amount of tin, coating 2.8 gloss oil/gold oil
Inner tin coating amount, coating 1.1/2.8/5.6 inner pigment/gloss oil/gold oil
Iron specification: 0.32*845 T4BA
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to
bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the purchased specifications (technical instructions and specification drawings are in our product description) coating and quantity.
Q:What are the shipping ports?
A:We ship from Tianjin Port, or according to your designated port.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials. As we are the manufacturer, we will provide an affordable and satisfactory price.
Q: How long does your delivery time take?
A:In general, our delivery time is within 20-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
