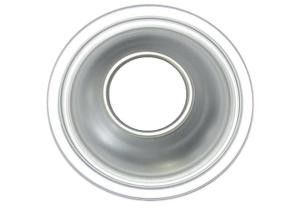

207.5# (60mm) General Top, Aersol tinplate cone Factory direct sales
Item D207.5 Common top cover for spray cans
thickness
Adjustment system/Tin plating quantity T3/T4CA/BA
Outer diameter of flange 69.90±0.20mm
The inner diameter of the flange is 67.60±0.20mm
Cover height 13.40±0.15mm
Total cover height 18.50±0.15mm
Contact height 4.00±0.10mm
Flange height 2.45±0.15
Countersunk depth 5.00±0.10mm
Outer diameter of tank mouth 31.20±0.10mm
The inner diameter of tank mouth is 25.40±0.10mm
The top geg weighs (0.34) 16.0~16.8g
The top geg weighs (0.33) 15.6~16.4g
Sealant dry film weight 70-90mg
Sealant moisture content /
Deformation pressure ≥1.3MPa
Bursting pressure ≥1.5MPa
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to
bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the purchased specifications (technical instructions and specification drawings are in our product description) coating and quantity.
Q:What are the shipping ports?
A:We ship from Tianjin Port, or according to your designated port.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials. As we are the manufacturer, we will provide an affordable and satisfactory price.
Q: How long does your delivery time take?
A:In general, our delivery time is within 20-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
